eclipse 使用maven 创建springmvc + mybatis

接着eclipse 使用maven 创建纯spring mvc项目

毕竟项目都要访问数据库的, 所以加上mybatis的支持也就是网上大多时候说的 SSM框架的搭建(Spring + Spring MVC + Mybatis)

这个项目就叫createssm

还是从pom.xml文件开始

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20


<!-- mybatis start -->
<dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis</artifactId>
    <version>${mybatis.version}</version>
</dependency>
<!-- mybatis-spring -->
<dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis-spring</artifactId>
    <version>1.3.0</version>
</dependency>
<!-- commons-dbcp 数据源 -->
<dependency>
    <groupId>commons-dbcp</groupId>
    <artifactId>commons-dbcp</artifactId>
    <version>1.4</version>
</dependency>

<!-- mybatis end -->

1
2
3
4
5
6
7
8
9


<!-- jdbc driver start -->
<!-- oracle/ojdbc14 -->
<dependency>
    <groupId>oracle</groupId>
    <artifactId>ojdbc14</artifactId>
    <version>10.2.0.4</version>
</dependency>

<!-- jdbc driver end -->

ojdbc14 的包一般比较难下, 从maven仓库手动下载到自己的maven本地仓库的oracle\ojdbc14\10.2.0.4\ojdbc14-10.2.0.4.jar

其实也可以用别得ojdbc, 但是貌似没有哪个比较好下载, 反正我的感觉是这样, 或者这里你用mysql来做测试也是一样的

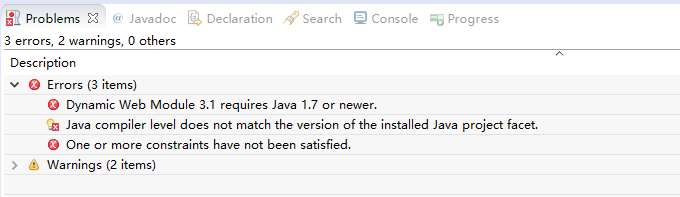

先说个题外话如果使用 update project 的话按照现在的pom.xml文件会报错

如下

如果出现类似的错误在pom文件中这样修改

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24


<build>
    <finalName>createssm</finalName>

    <plugins>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-compiler-plugin</artifactId>
            <version>3.1</version>
            <configuration>
                <source>1.8</source>
                <target>1.8</target>
                <encoding>UTF-8</encoding>
            </configuration>
        </plugin>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-war-plugin</artifactId>
            <version>2.1.1</version>
            <configuration>
                <encoding>UTF-8</encoding>
            </configuration>
        </plugin>
    </plugins>
</build>

然后再次update project 就好了

目前来说pom.xml文件为

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159


<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.learn.javaee</groupId>
    <artifactId>createssm</artifactId>
    <packaging>war</packaging>
    <version>0.0.1-SNAPSHOT</version>
    <name>createssm Maven Webapp</name>
    <url>http://maven.apache.org</url>

    <properties>
        <spring.version>4.3.2.RELEASE</spring.version>

    </properties>


    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>3.8.1</version>
            <scope>test</scope>
        </dependency>

        <!-- servlet api -->
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.2</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
        </dependency>


        <!-- Spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aop</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-orm</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-websocket</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!-- Spring -->


        <!-- mybatis start -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.4.1</version>
        </dependency>
        <!-- mybatis-spring -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.0</version>
        </dependency>
        <!-- commons-dbcp 数据源 -->
        <dependency>
            <groupId>commons-dbcp</groupId>
            <artifactId>commons-dbcp</artifactId>
            <version>1.4</version>
        </dependency>

        <!-- mybatis end -->


        <!-- jdbc driver start -->
        <!-- oracle/ojdbc14 -->
        <dependency>
            <groupId>oracle</groupId>
            <artifactId>ojdbc14</artifactId>
            <version>10.2.0.4</version>
        </dependency>

        <!-- jdbc driver end -->
    </dependencies>
    <build>
        <finalName>createssm</finalName>

        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-war-plugin</artifactId>
                <version>2.1.1</version>
                <configuration>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

在applicationcontext.xml中最后插入一行

1

<import resource="classpath:spring-mybatis.xml"/>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31


<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!-- 设置自动扫描的包 -->
    <context:component-scan base-package="cn.learn.*"></context:component-scan>
    <!-- 开启自动注解支持 -->
    <mvc:annotation-driven />
    <!-- 定义静态资源位置 -->
    <mvc:resources location="/WEB-INF/static/" mapping="/static/**"></mvc:resources>

    <!-- jsp视图处理 start -->
    <bean
        class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <!-- 视图前缀 -->
        <property name="prefix" value="/WEB-INF/view/"></property>
        <!-- 视图后缀 -->
        <property name="suffix" value=".jsp"></property>
        <property name="viewClass"
            value="org.springframework.web.servlet.view.InternalResourceView" />
        <property name="order" value="1" />
    </bean>
    <!-- jsp视图处理 end -->

    <!-- 引入mybatis配置 -->
    <import resource="classpath:spring-mybatis.xml"/>
</beans>

与applicationcontext.xml文件同目录新建spring-mybatis.xml

内容

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48


<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">

<!-- 引入配置文件 -->
    <bean id="propertyConfigurer"
        class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
        <property name="location" value="classpath:jdbc.properties" />
    </bean>

    <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
        destroy-method="close">
        <property name="driverClassName" value="${driver}" />
        <property name="url" value="${url}" />
        <property name="username" value="${username}" />
        <property name="password" value="${password}" />
        <!-- 初始化连接大小 -->
        <property name="initialSize" value="${initialSize}"></property>
        <!-- 连接池最大数量 -->
        <property name="maxActive" value="${maxActive}"></property>
        <!-- 连接池最大空闲 -->
        <property name="maxIdle" value="${maxIdle}"></property>
        <!-- 连接池最小空闲 -->
        <property name="minIdle" value="${minIdle}"></property>
        <!-- 获取连接最大等待时间 -->
        <property name="maxWait" value="${maxWait}"></property>
    </bean>

    <!-- spring和MyBatis完美整合，不需要mybatis的配置映射文件 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource" />
        <!-- 自动扫描mapping.xml文件 -->
        <property name="mapperLocations" value="classpath:cn/learn/mapping/*.xml"></property>
    </bean>

    <!-- DAO接口所在包名，Spring会自动查找其下的类 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="cn.learn.dao" />
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"></property>
    </bean>

    <!-- (事务管理)transaction manager, use JtaTransactionManager for global tx -->
    <bean id="transactionManager"
        class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>
</beans>

接下来的工作就是写各种类,

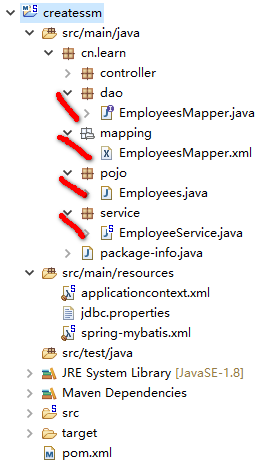

有如下图目录结构

按照spring-mybatis.xml文件

需要创建dao层和mapping层

先写mapping层的内容, 也就是EmployeesMapper.xml文件

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164


<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="cn.learn.dao.EmployeesMapper" >    -- 下面会写这个类
  <resultMap id="BaseResultMap" type="cn.learn.pojo.Employees" >  -- 实体类的全类名, 可以任意, 不顾一般都是按照表名写
    <id column="EMPLOYEE_ID" property="employeeId" jdbcType="DECIMAL" />
    <result column="FIRST_NAME" property="firstName" jdbcType="VARCHAR" />
    <result column="LAST_NAME" property="lastName" jdbcType="VARCHAR" />
    <result column="EMAIL" property="email" jdbcType="VARCHAR" />
    <result column="PHONE_NUMBER" property="phoneNumber" jdbcType="VARCHAR" />
    <result column="HIRE_DATE" property="hireDate" jdbcType="DATE" />
    <result column="JOB_ID" property="jobId" jdbcType="VARCHAR" />
    <result column="SALARY" property="salary" jdbcType="DECIMAL" />
    <result column="COMMISSION_PCT" property="commissionPct" jdbcType="DECIMAL" />
    <result column="MANAGER_ID" property="managerId" jdbcType="DECIMAL" />
    <result column="DEPARTMENT_ID" property="departmentId" jdbcType="DECIMAL" />
  </resultMap>
  <sql id="Base_Column_List" >
    EMPLOYEE_ID, FIRST_NAME, LAST_NAME, EMAIL, PHONE_NUMBER, HIRE_DATE, JOB_ID, SALARY,
    COMMISSION_PCT, MANAGER_ID, DEPARTMENT_ID
  </sql>
  <select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Integer" >
    select
    <include refid="Base_Column_List" />
    from EMPLOYEES
    where EMPLOYEE_ID = #{employeeId,jdbcType=DECIMAL}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer" >
    delete from EMPLOYEES
    where EMPLOYEE_ID = #{employeeId,jdbcType=DECIMAL}
  </delete>
  <insert id="insert" parameterType="cn.learn.pojo.Employees" >
    insert into EMPLOYEES (EMPLOYEE_ID, FIRST_NAME, LAST_NAME,
      EMAIL, PHONE_NUMBER, HIRE_DATE,
      JOB_ID, SALARY, COMMISSION_PCT,
      MANAGER_ID, DEPARTMENT_ID)
    values (#{employeeId,jdbcType=DECIMAL}, #{firstName,jdbcType=VARCHAR}, #{lastName,jdbcType=VARCHAR},
      #{email,jdbcType=VARCHAR}, #{phoneNumber,jdbcType=VARCHAR}, #{hireDate,jdbcType=DATE},
      #{jobId,jdbcType=VARCHAR}, #{salary,jdbcType=DECIMAL}, #{commissionPct,jdbcType=DECIMAL},
      #{managerId,jdbcType=DECIMAL}, #{departmentId,jdbcType=DECIMAL})
  </insert>
  <insert id="insertSelective" parameterType="cn.learn.pojo.Employees" >
    insert into EMPLOYEES
    <trim prefix="(" suffix=")" suffixOverrides="," >
      <if test="employeeId != null" >
        EMPLOYEE_ID,
      </if>
      <if test="firstName != null" >
        FIRST_NAME,
      </if>
      <if test="lastName != null" >
        LAST_NAME,
      </if>
      <if test="email != null" >
        EMAIL,
      </if>
      <if test="phoneNumber != null" >
        PHONE_NUMBER,
      </if>
      <if test="hireDate != null" >
        HIRE_DATE,
      </if>
      <if test="jobId != null" >
        JOB_ID,
      </if>
      <if test="salary != null" >
        SALARY,
      </if>
      <if test="commissionPct != null" >
        COMMISSION_PCT,
      </if>
      <if test="managerId != null" >
        MANAGER_ID,
      </if>
      <if test="departmentId != null" >
        DEPARTMENT_ID,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides="," >
      <if test="employeeId != null" >
        #{employeeId,jdbcType=DECIMAL},
      </if>
      <if test="firstName != null" >
        #{firstName,jdbcType=VARCHAR},
      </if>
      <if test="lastName != null" >
        #{lastName,jdbcType=VARCHAR},
      </if>
      <if test="email != null" >
        #{email,jdbcType=VARCHAR},
      </if>
      <if test="phoneNumber != null" >
        #{phoneNumber,jdbcType=VARCHAR},
      </if>
      <if test="hireDate != null" >
        #{hireDate,jdbcType=DATE},
      </if>
      <if test="jobId != null" >
        #{jobId,jdbcType=VARCHAR},
      </if>
      <if test="salary != null" >
        #{salary,jdbcType=DECIMAL},
      </if>
      <if test="commissionPct != null" >
        #{commissionPct,jdbcType=DECIMAL},
      </if>
      <if test="managerId != null" >
        #{managerId,jdbcType=DECIMAL},
      </if>
      <if test="departmentId != null" >
        #{departmentId,jdbcType=DECIMAL},
      </if>
    </trim>
  </insert>
  <update id="updateByPrimaryKeySelective" parameterType="cn.learn.pojo.Employees" >
    update EMPLOYEES
    <set >
      <if test="firstName != null" >
        FIRST_NAME = #{firstName,jdbcType=VARCHAR},
      </if>
      <if test="lastName != null" >
        LAST_NAME = #{lastName,jdbcType=VARCHAR},
      </if>
      <if test="email != null" >
        EMAIL = #{email,jdbcType=VARCHAR},
      </if>
      <if test="phoneNumber != null" >
        PHONE_NUMBER = #{phoneNumber,jdbcType=VARCHAR},
      </if>
      <if test="hireDate != null" >
        HIRE_DATE = #{hireDate,jdbcType=DATE},
      </if>
      <if test="jobId != null" >
        JOB_ID = #{jobId,jdbcType=VARCHAR},
      </if>
      <if test="salary != null" >
        SALARY = #{salary,jdbcType=DECIMAL},
      </if>
      <if test="commissionPct != null" >
        COMMISSION_PCT = #{commissionPct,jdbcType=DECIMAL},
      </if>
      <if test="managerId != null" >
        MANAGER_ID = #{managerId,jdbcType=DECIMAL},
      </if>
      <if test="departmentId != null" >
        DEPARTMENT_ID = #{departmentId,jdbcType=DECIMAL},
      </if>
    </set>
    where EMPLOYEE_ID = #{employeeId,jdbcType=DECIMAL}
  </update>
  <update id="updateByPrimaryKey" parameterType="cn.learn.pojo.Employees" >
    update EMPLOYEES
    set FIRST_NAME = #{firstName,jdbcType=VARCHAR},
      LAST_NAME = #{lastName,jdbcType=VARCHAR},
      EMAIL = #{email,jdbcType=VARCHAR},
      PHONE_NUMBER = #{phoneNumber,jdbcType=VARCHAR},
      HIRE_DATE = #{hireDate,jdbcType=DATE},
      JOB_ID = #{jobId,jdbcType=VARCHAR},
      SALARY = #{salary,jdbcType=DECIMAL},
      COMMISSION_PCT = #{commissionPct,jdbcType=DECIMAL},
      MANAGER_ID = #{managerId,jdbcType=DECIMAL},
      DEPARTMENT_ID = #{departmentId,jdbcType=DECIMAL}
    where EMPLOYEE_ID = #{employeeId,jdbcType=DECIMAL}
  </update>
</mapper>

然后根据这文件写dao层的EmployeesMapping.java文件也就是上面说的

cn.learn.dao.EmployeesMapper
, 注意代码中灰色背景部分的文

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17


package cn.learn.dao;

import cn.learn.pojo.Employees;

public interface EmployeesMapper {
    int deleteByPrimaryKey(Integer employeeId);

    int insert(Employees record);

    int insertSelective(Employees record);

    Employees selectByPrimaryKey(Integer employeeId);

    int updateByPrimaryKeySelective(Employees record);

    int updateByPrimaryKey(Employees record);
}

其中没个方法对应xml文件中的一个id

然后写

cn.learn.pojo.Employees

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116


package cn.learn.pojo;

import java.math.BigDecimal;
import java.util.Date;

public class Employees {
    private Integer employeeId;

    private String firstName;

    private String lastName;

    private String email;

    private String phoneNumber;

    private Date hireDate;

    private String jobId;

    private BigDecimal salary;

    private BigDecimal commissionPct;

    private Integer managerId;

    private Short departmentId;

    public Integer getEmployeeId() {
        return employeeId;
    }

    public void setEmployeeId(Integer employeeId) {
        this.employeeId = employeeId;
    }

    public String getFirstName() {
        return firstName;
    }

    public void setFirstName(String firstName) {
        this.firstName = firstName == null ? null : firstName.trim();
    }

    public String getLastName() {
        return lastName;
    }

    public void setLastName(String lastName) {
        this.lastName = lastName == null ? null : lastName.trim();
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email == null ? null : email.trim();
    }

    public String getPhoneNumber() {
        return phoneNumber;
    }

    public void setPhoneNumber(String phoneNumber) {
        this.phoneNumber = phoneNumber == null ? null : phoneNumber.trim();
    }

    public Date getHireDate() {
        return hireDate;
    }

    public void setHireDate(Date hireDate) {
        this.hireDate = hireDate;
    }

    public String getJobId() {
        return jobId;
    }

    public void setJobId(String jobId) {
        this.jobId = jobId == null ? null : jobId.trim();
    }

    public BigDecimal getSalary() {
        return salary;
    }

    public void setSalary(BigDecimal salary) {
        this.salary = salary;
    }

    public BigDecimal getCommissionPct() {
        return commissionPct;
    }

    public void setCommissionPct(BigDecimal commissionPct) {
        this.commissionPct = commissionPct;
    }

    public Integer getManagerId() {
        return managerId;
    }

    public void setManagerId(Integer managerId) {
        this.managerId = managerId;
    }

    public Short getDepartmentId() {
        return departmentId;
    }

    public void setDepartmentId(Short departmentId) {
        this.departmentId = departmentId;
    }
}

其实这三个文件可以自动生成, 回头在写一个怎么自动生成这三个文件的记录

最后写一个service, 用来处理业务层内容. 一般在项目中, controller层是用来处理逻辑层的东西

cn.learn.service.EmployeeService

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19


package cn.learn.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import cn.learn.dao.EmployeesMapper;
import cn.learn.pojo.Employees;

@Service
public class EmployeeService {

    @Autowired
    private EmployeesMapper employeesMapper;

    public void pringEmployee(Integer employeeId){
        Employees employees = employeesMapper.selectByPrimaryKey(employeeId);
        System.out.println(employees.getEmail());
    }
}

注解不能被忽略, 要不然不好用, 这里简单的输出了一下被查询员工的email

最后改写一下

cn.learn.controller.IndexController

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23


package cn.learn.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

import cn.learn.service.EmployeeService;

@Controller
@RequestMapping("/index")
public class IndexController {

    @Autowired
    private EmployeeService employeesService;

    @RequestMapping("/helloword")
    public ModelAndView hellowordAction(){
        employeesService.pringEmployee(100);
        //直接返回到view目录下的 index目录下的helloword.jsp
        return new ModelAndView("index/helloword");
    }
}

红色的100是我自己数据库里面一个员工的id

到这里为止, 启动服务器, 访问http://localhost:8080/createssm/index/helloword 就会在控制台数据对应员工的邮箱地址了

最后附上用plsql导出的employees表的数据结构, 这里有个别字段可能由于有外键, 导致导入失败, 自己写的时候, 可以去掉这些约束

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81


-----------------------------------------------------
-- Export file for user C##AZHW@ORCL               --
-- Created by Administrator on 2016/11/12, 1:51:37 --
-----------------------------------------------------

set define off
spool sql.log

prompt
prompt Creating table EMPLOYEES
prompt ========================
prompt
create table EMPLOYEES
(
  employee_id    NUMBER(6) not null,
  first_name     VARCHAR2(20),
  last_name      VARCHAR2(25),
  email          VARCHAR2(25),
  phone_number   VARCHAR2(20),
  hire_date      DATE,
  job_id         VARCHAR2(10),
  salary         NUMBER(8,2),
  commission_pct NUMBER(2,2),
  manager_id     NUMBER(6),
  department_id  NUMBER(4)
)
;
comment on column EMPLOYEES.employee_id
  is '员工id';
comment on column EMPLOYEES.first_name
  is '姓';
comment on column EMPLOYEES.last_name
  is '名字';
comment on column EMPLOYEES.email
  is '邮箱';
comment on column EMPLOYEES.phone_number
  is '电话';
comment on column EMPLOYEES.hire_date
  is '入职日期';
comment on column EMPLOYEES.job_id
  is '工号';
comment on column EMPLOYEES.salary
  is '工资';
comment on column EMPLOYEES.commission_pct
  is '职务';
comment on column EMPLOYEES.manager_id
  is '直属领导id';
comment on column EMPLOYEES.department_id
  is '部门id';
alter table EMPLOYEES
  add constraint EMP_EMP_ID_PK primary key (EMPLOYEE_ID);
alter table EMPLOYEES
  add constraint EMP_EMAIL_UK unique (EMAIL);
alter table EMPLOYEES
--这几个字段有外键约束, 可以去掉不用
  add constraint EMP_DEPT_FK foreign key (DEPARTMENT_ID)
  references DEPARTMENTS (DEPARTMENT_ID);
alter table EMPLOYEES
  add constraint EMP_JOB_FK foreign key (JOB_ID)
  references JOBS (JOB_ID);
alter table EMPLOYEES
  add constraint EMP_MANAGER_FK foreign key (MANAGER_ID)
  references EMPLOYEES (EMPLOYEE_ID);
alter table EMPLOYEES
  add constraint EMP_EMAIL_NN
  check ("EMAIL" IS NOT NULL);
alter table EMPLOYEES
  add constraint EMP_HIRE_DATE_NN
  check ("HIRE_DATE" IS NOT NULL);
alter table EMPLOYEES
  add constraint EMP_JOB_NN
  check ("JOB_ID" IS NOT NULL);
alter table EMPLOYEES
  add constraint EMP_LAST_NAME_NN
  check ("LAST_NAME" IS NOT NULL);
alter table EMPLOYEES
  add constraint EMP_SALARY_MIN
  check (salary > 0);


spool off

eclipse 使用maven 创建springmvc + mybatis

相关内容
